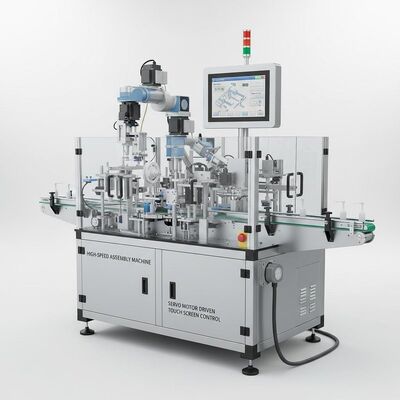

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control
High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

大画像 :  High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

商品の詳細:
起源の場所: 中国
ブランド名: SENCAN
証明: CE, ISO9001
モデル番号: SC-TK-795
お支払配送条件:
最小注文数量: 1セット
価格: Negotiate price according to actual situation
パッケージの詳細: 木製ケース
受渡し時間: 90日
支払条件: T/T、L/C
供給の能力: 1-20セット
詳細製品概要
製品認証: CE 言語: 英語/中国語
適用される製品: ゼリーキャップ 保証: 12ヶ月
アセンブリタイプ: 全自動 空気消費量: 0.5m3/min
アセンブリ容量: 大容量 操作の種類: ターンテーブル
操作方法: タッチスクリーンコントロール 製品サイズ範囲: カスタマイズ可能
動作モード: 自動 機構: サーボ
ハイライト:

1500-2500pcs/hr Lotion Pump Assembly Machine

,

Servo Motor Driven Trigger Sprayer Assembly Machine

,

Touch Screen Control Liquid Sprayer Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine
Key Features

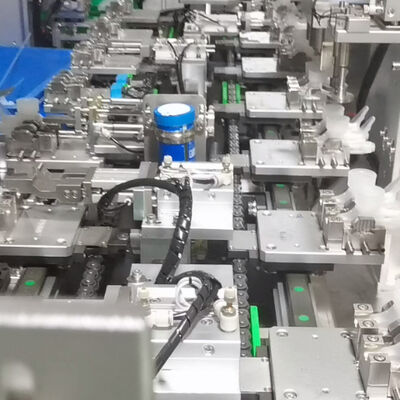

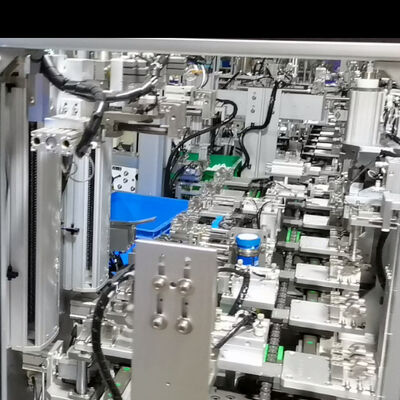

  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement
  • Static fixtures during assembly with precise positioning and secondary positioning at each workstation
  • Independent manipulators at each station for simplified maintenance
  • Cylinder-powered manipulators for faster spare parts changes and easier debugging
  • Automatic silicone oiling during tube insertion process with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce production noise
  • Comprehensive detection after each assembly process to eliminate defective products
  • PLC system control with touch screen operation interface
Technical Specifications

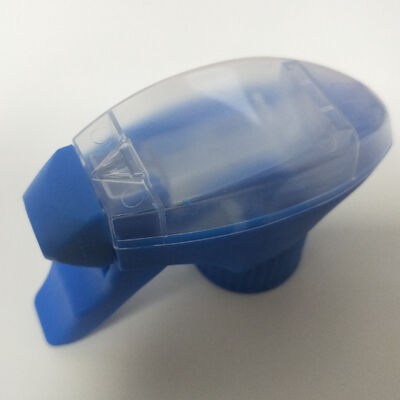

Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500 pieces per hour (customizable to customer requirements)
Qualified Product Rate Above 98%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW per hour
Dimensions Actual size varies with production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine set
