Adjustable Speed CRC Cap Assembly Machine with Touch Screen Operation and 99% Qualified Rate for Desiccant Caps
詳細製品概要
| 適したキャップタイプ: |
CRCの上限 |
容量: |
高い |
| 材料: |
ステンレス鋼 +アルミニウム合金 |
動作モード: |
自動 |
| 電源: |
電気 |
頻度: |
50Hz |
| 保証: |
1年 |
動作速度: |
調整可能な速度設定 |
| 安全装置: |
非常停止ボタン |
適した帽子: |
CRCの上限 |
| 電源: |
220V/380V、50/60Hz |
操作インターフェース: |
タッチスクリーン |
| 製品名: |
CRCキャップ組立機 |
| ハイライト: |
Adjustable speed CRC Cap Assembly Machine, Touch screen Desiccant Cap Assembly Machine, 99% qualified rate Child Resistant Cap Assembly Machine |

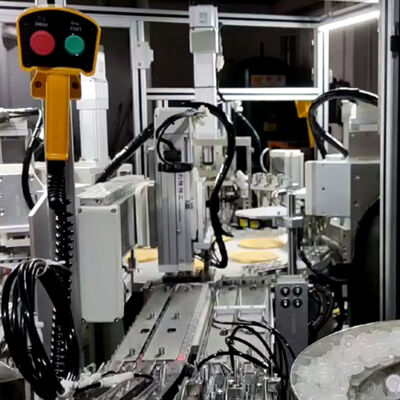

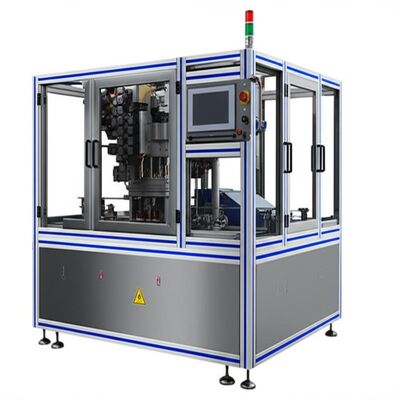

CRC Cap Assembly Machine
Product Overview
Advanced programmable assembly equipment designed for pharmaceutical and industrial cap production, featuring customizable settings to accommodate various production speeds and cap specifications.
Key Features
- Versatile assembly capability for medicinal flange covers, duck tongue covers, spring covers, and moisture-proof agent caps
- Automatic filling system for granular desiccants (molecular sieve, silica gel) and block desiccant core assembly
- Integrated punching and film cutting mechanism for sealing paper, reducing production costs and improving product qualification rates
- Centralized waste processing system for sealing paper to minimize operator workload
- Connection to desiccant centralized supply bin prevents moisture absorption and contamination during assembly

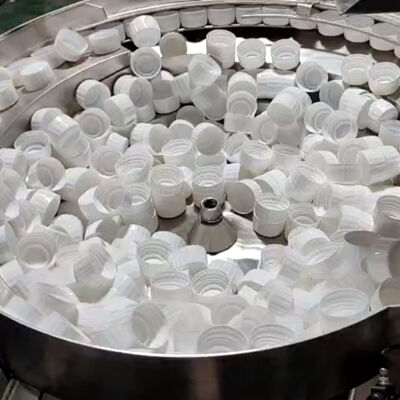

- Circular cover feeding machine ensures stable and rapid material supply
- Servo motor + splitter power system delivers stable running speed and high assembly precision
- Comprehensive testing functions at each assembly step to ensure 100% product qualification
- Automatic counting system for easy production output statistics
- Separate export channels for good and defective products
- PLC control system with human-machine interface for simplified operation
- Customizable design to match specific production capacity and product specifications
- Compatible with injection molding machines and image detection systems for complete automated production lines
Technical Specifications
| Applicable Products |
Desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap, CRC cap |
| Production Speed |
1,500-8,500 pieces/hour (customizable to customer requirements) |
| Product Qualification Rate |
Above 99% |
| Operation Rate |
Above 95% |
| Power Source |
AC380V, 50Hz, 4kW/hour |
| Dimensions |
Customized based on production speed requirements |
| Weight |
Approximately 2,000 kg |
| Operator Requirements |
3 sets/2 persons, recommended 1 set/person |
