Automatic Medical Product Assembly Machine with 99% Qualified Rate, PLC Control, and Stainless Steel Construction for Medical Device Lines
詳細製品概要
| 生産効率: |
99% |
保証: |
1年 |
| 制御システム: |
タッチスクリーンを備えたPLCコントロール |
操作インターフェイス: |
タッチスクリーン |
| アセンブリタイプ: |
自動 |
動作速度: |
調整可能 |
| 応用: |
ユーロスタイルボトル用キャップアセンブリ |
操作人: |
1名 |
| 機構: |
サーボ |
| ハイライト: |
99% Qualified Rate Medical Product Assembly Machine, PLC Control Automatic Assembly Machine, Stainless Steel Medical Device Assembly Equipment |

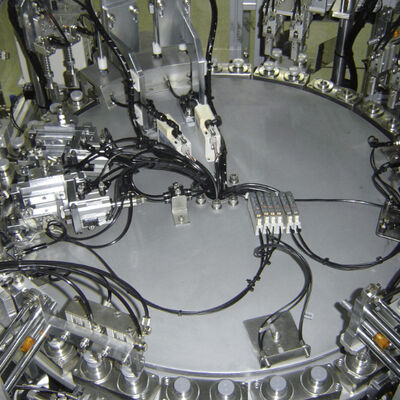

Medical Product Assembly Machine
Advanced automated assembly system designed for seamless integration with medical device production lines, providing high-efficiency assembly of critical medical components.
Key Features

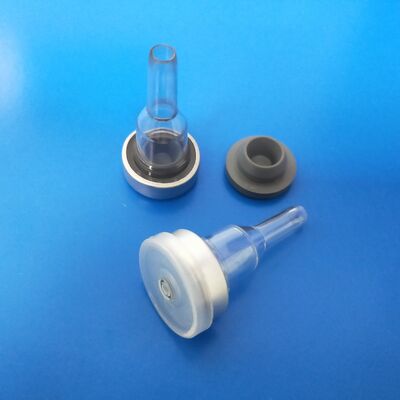

- Automated assembly for spike ports and injection ports of non-PVC double tube soft bags
- Handles aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs
- Constructed with stainless steel and aluminum alloy materials compliant with ISO and GMP pharmaceutical standards
- Titanium alloy aluminum plastic cap sealing with mirror-polished surface for superior sealing quality
- Gear-driven sealing knife rotation with individual cap sealing for high qualification rates
- Integrated detection systems at each workstation ensuring assembly accuracy and correctness
- Servo motor and indexing drive power system for high-precision assembly operations
- PLC control system with intuitive touch screen HMI for easy operation
Technical Specifications
| Applicable Products |
Aluminum-plastic caps & ports, PC ports, spike ports and injection ports for non-PVC soft tube IV bags |
| Production Speed |
8,000 - 15,000 pieces per hour (customizable to customer requirements) |
| Qualified Product Rate |
Above 99% |
| Operation Rate |
Above 95% |
| Power Source |
AC380V, 50Hz, 4kW per hour |
| Dimensions |
3500mm × 3400mm × 1800mm (L×W×H) - Actual size varies with production speed requirements |
| Weight |
Approximately 3000kg |
| Operator Requirement |
1 person per machine set |
Quality Assurance
Designed and manufactured to meet stringent pharmaceutical industry standards, ensuring reliable performance and consistent output quality for medical device production.
