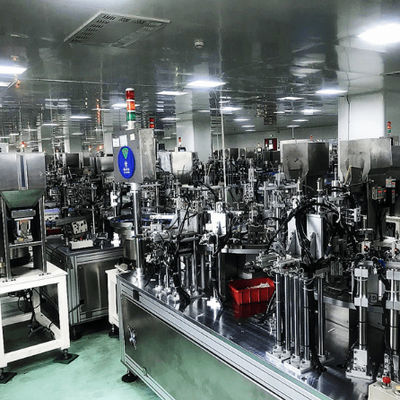

Safety Lancet Production Line with Safety Features Vibrating Plate Feeding and 1 Year Warranty for Blood Lancet Assembly
詳細製品概要
| 原産国: |
中国 |
コントロール: |
PLC |
| 生産プロセス: |
自動組み立て |
安全機能: |
安全ドア,緊急停止ボタン |
| 操作率: |
96％ |
包装形態: |
木製ケース |
| 保証: |
1年 |
認証: |
CE、ISO 9001 |
| 給餌方法: |
振動するプレート |
適用される製品: |
血液ランセット針 |
| 製品タイプ: |
アセンブリマシン |
資格のある製品レート: |
99％以上 |
| 使用法: |
防犯用ランセットの製造用 |
| ハイライト: |
Safety Features Safety Lancet Production Line, Vibrating Plate Feeding Blood Lancet Assembly Machine, 1 Year Warranty Lancet Manufacturing Equipment |

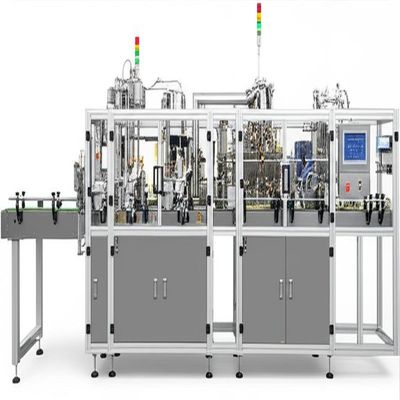

Advanced Safety Lancet Production Line
Designed for improved blood collection efficiency with automated assembly and quality control features.
Key Features
- Automatic assembly for blood lancets and blood collecting needles
- Customizable loop line or rotatory turntable production configuration
- Precision servo motor + indexing drive for accurate assembly positioning
- Integrated detection function after each assembly process for quality assurance
- Lancet eject and automatic reset functions for high product qualification rate
- Pneumatic power system reduces maintenance time and technical requirements
- Premium components sourced from international suppliers
- GMP-compliant construction using stainless steel and aluminum alloy
- User-friendly PLC control system with HMI operation
Technical Specifications
| Applicable Products |
Peripheral blood collecting needles, blood lancet, adjustable lancet, safety lancet |
| Production Speed |
2500-8000 pieces per hour |
| Product Qualification Rate |
Above 98% |
| Operation Rate |
Above 95% |
| Power Requirements |
AC380V, 50Hz, 3kw/h, air pressure 7kg/m³ |
| Dimensions |
Varies with production speed configuration |
| Weight |
Approximately 2850kg |
| Operator Requirement |
1 person per machine |
