Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

ブランド名:	SENCAN
モデル番号:	SC-TP-818
MOQ:	1セット
価格:	Negotiate price according to actual situation
支払い条件:	T/T、L/C
補給能力:	2-20 セット

詳細情報

起源の場所:

中国

証明:

CE, ISO9001

製品容量:

時給4000〜12000キャップ

モデル:

カップ組立機

自動化グレード:

自動

製品ブランド:

ユーロ

動作速度:

調整可能

アクティブな力:

サーボモーターまたはシリンダー

操作率:

98%

空気圧計:

SMC

キャップの種類:

インフュージョンキャップ

パッケージの詳細:

木製ケース

ハイライト:

製品説明

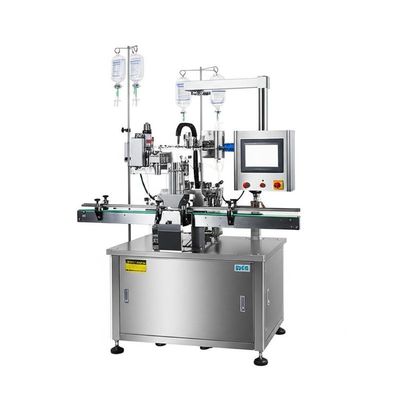

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
