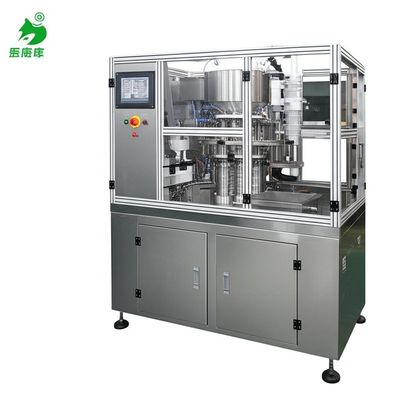

Automatic Desiccant Cap Assembly Machine with 1500-8500pcs/hr High Efficiency and 98% Qualified Rate

Automatic Desiccant Cap Assembly Machine with 1500-8500pcs/hr High Efficiency and 98% Qualified Rate

ブランド名: SENCAN
モデル番号: SC-TP-813
MOQ: 1セット
価格: Negotiate price according to actual situation
支払い条件: T/T、L/C
補給能力: 2-20 セット
詳細情報
起源の場所:
中国
証明:
CE, ISO9001
容量:
顧客の要求に応じて
アクティブな力:
サーボモーター
サイズ:
コンパクト
機構:
サーボ
製品運用:
自動
操作インターフェイス:
タッチスクリーン
制御システム:
PLC制御
空気圧:
0.5-0.8MPA
製品機能:
乾燥剤のキャップ
自動化グレード:
自動
効率比:
95%以上
適格料金:
98%
製品の色:
パッケージの詳細:
木製ケース
ハイライト:

1500-8500pcs/hr Desiccant Cap Assembly Machine

,

High Efficiency Silica Gel Filling Machine

,

98% Qualified Rate Sealing Cap Assembly Machine

製品説明
Desiccant Cap Silica Gel Filling Sealing Cap Assembly Machine
Key Features
  • Automatic assembly of desiccant caps for pharmaceutical and healthcare applications
  • Precision filling of granular/powder desiccants (molecular sieve, silica gel) and capsule/core insertion
  • Integrated punching and cutting system for sealing paper reduces costs and improves product quality
  • Automatic waste collection system minimizes operator labor
  • Protected desiccant supply bin prevents moisture contamination
  • High-speed, stable round cap feeding system
  • Comprehensive quality checks ensure 100% product qualification
  • Built-in production counting for accurate statistics
  • Separate exits for qualified/unqualified products
  • Servo motor + indexing drive provides stable operation and high assembly accuracy
  • User-friendly PLC control system with touch screen interface
  • Customizable to meet specific capacity and specification requirements
  • Compatible with injection molding machines, camera inspection systems, and other equipment for complete production line integration
Technical Specifications
Applicable Products Desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production Speed 1500-8500pcs/hr (customizable)
Product Qualification Rate Above 99%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kw/hr
Dimensions Varies by production speed
Weight Approximately 2000kg
Operator Requirements 3 sets/2 persons (recommended 1 set/person)
