High Efficiency Desiccant Cap Assembly Machine with 96% Operating Rate and Three-phase Five-wire System

ブランド名:	SENCAN
モデル番号:	SC-TP-812
MOQ:	1セット
価格:	Negotiate price according to actual situation
支払い条件:	T/T、L/C
補給能力:	2-20 セット

詳細情報

起源の場所:

中国

証明:

CE, ISO9001

製品サイズ:

大きい

特徴:

高効率で操作が簡単

動作モード:

タッチスクリーン

アセンブリタイプ:

半自動

アセンブリ容量:

大容量

効率比:

95%以上

機構:

サーボ

製品認証:

CE、ISO

制御システム:

PLC制御

パッケージングタイプ:

木製ケース

ケーブルサイズ:

三相5線式

稼働率:

96％

パッケージの詳細:

木製ケース

ハイライト:

製品説明

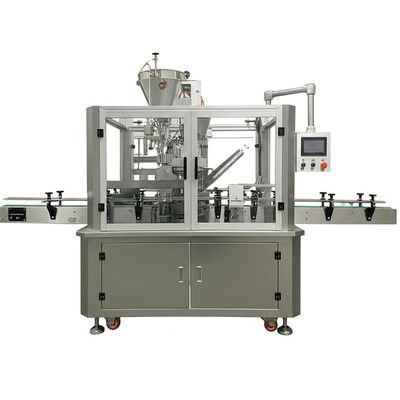

Desiccant Cap Silica Gel Filling Sealing Cap Assembly Machine

Key Features

Automated assembly of desiccant caps for pharmaceutical and healthcare applications
Precision filling of granular/powder desiccants (molecular sieve, silica gel) and capsule/core insertion
Integrated punching and cutting system for sealing paper to reduce costs and improve yield
Automatic waste collection system minimizes operator intervention
Moisture-protected desiccant supply bin maintains product integrity
High-speed, stable feeding system for round-shaped caps
Comprehensive quality checks ensure 100% product qualification
Built-in production counting for accurate statistics
Separate exits for qualified and unqualified products
Servo motor + indexing drive for stable operation and high precision
User-friendly PLC control with touch screen interface
Customizable to meet specific capacity and specification requirements
Compatible with injection molding machines, camera inspection systems, and other production line equipment

Technical Specifications

Applicable Products	Desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production Speed	1500-8500pcs/hr (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
