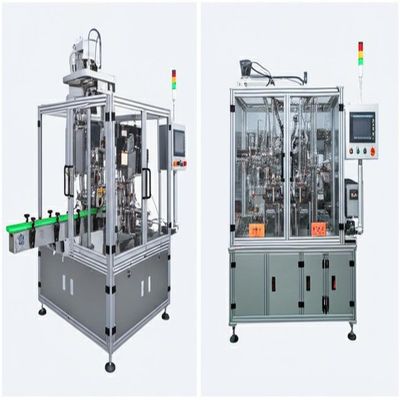

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

ブランド名:	SENCAN
モデル番号:	SC-TP-798
MOQ:	1セット
価格:	Negotiate price according to actual situation
支払い条件:	T/T、L/C
補給能力:	2-20 セット

詳細情報

起源の場所:

中国

証明:

CE, ISO9001

電圧:

220V

メンテナンス:

簡単

操作インターフェイス:

タッチスクリーン

給餌方法:

振動ディスク

エラー検出:

自動

操作方法:

タッチスクリーンコントロール

製品認証:

CE、ISO

空気消費:

0.5m3/min

自動化レベル:

完全に自動化されています

容量:

顧客の要件に応じて

パッケージの詳細:

木製のケース

ハイライト:

製品説明

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly

Key Features

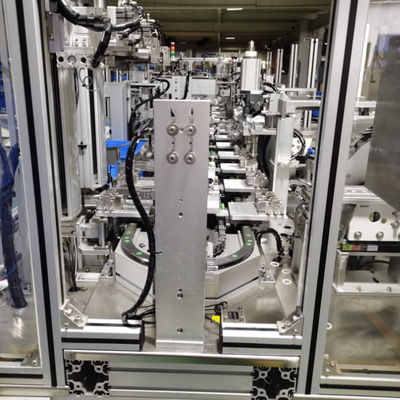

Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
Independent workstations with secondary positioning to achieve over 98% product qualification rate
Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
Automatic silicone oil application during tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce operational noise
Integrated quality detection at each assembly stage to eliminate defective products
PLC control system with touch screen interface for easy operation

Technical Specifications

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Requirements	AC380V, 50Hz, 4kw/hr
Dimensions	Variable based on production speed requirements
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
