商品の詳細:
お支払配送条件:
|
| 色: | 銀 | リンク: | 自動組立生産ライン |
|---|---|---|---|
| 主な素材: | ステンレス鋼 | アセンブリ速度: | 高速 |
| 組立範囲: | 1-50mm | 保証期間: | 1年 |
| 起源: | 中国 | メインドライブ: | サーボモーターとインデキシングディスク |
| コントロール: | plc | 色: | ステンレス鋼 金属色 |
| パッキング: | 木製のケース | 操作率: | 98％ |
| 効率: | 高い | 電源: | 電気 |
| ハイライト: | 98% Operation Rate Medical Product Assembly Machine,2500-8000pph Production Speed IV Soft Bag Caps and Ports Assembly Machine,High Efficiency Automatic Assembly Production Line |
||
Features

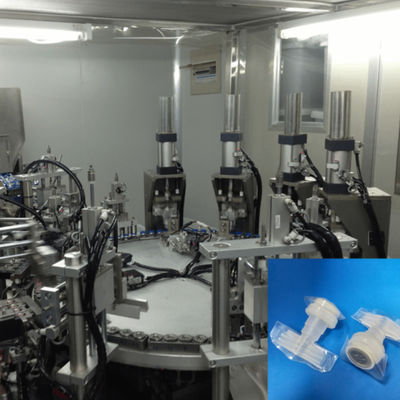

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
