| 空気圧計: | SMC | 手術: | 約95% |
|---|---|---|---|
| 保証: | 1年 | 特徴: | PLC制御、タッチスクリーン操作 |
| 操作モード: | 自動 | アセンブリ容量: | 4500〜12000/時間 |
| 関数: | キャップアセンブリ | 適したキャップタイプ: | 2つ折りたたむキャップの充填キャップ |
| 動作モード: | 自動 | 色: | ステンレス鋼 金属色 |
| アドバンテージ: | 点滴キャップの平溶接面 | インフィードタイプ: | 振動ディスク |
| プロダクト頻度: | 50Hz | ||

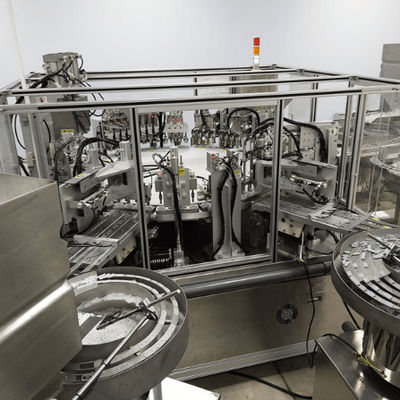

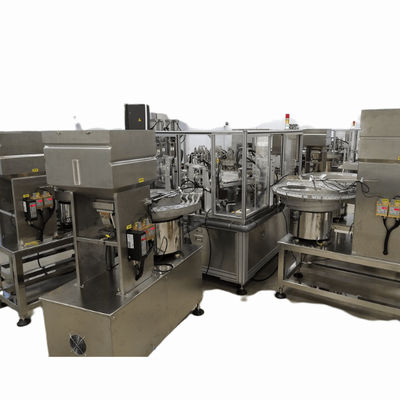

| ハイライト: | 4500-12000 per/hour Euro Cap Assembly Machine,99% Qualified Rate Cap Assembly Machine,95% Operation Rate Ultrasonic Welding Cap Assembly Machine |
||
Features
1. For assembly caps and closures require ultrasonic welding.
2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
3. Main power servo motor + indexing drive, high precision and high qualified product rate.
4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.
5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.
Properties
|
Applicable products |
Multi-piece plastic caps and closures requiring ultrasonic welding |
|
Production speed |
8000-15000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
L3500×W3400×H1800(mm) Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
