商品の詳細:
お支払配送条件:
|
| 原産国: | 中国 | オペレーター: | シングルまたはダブル |
|---|---|---|---|
| メインドライブ: | サーボモーターとインデキシングディスク | 材料: | ステンレス鋼 |
| オペレーティング·システム: | plc | 生産能力: | 4500〜2000/時間 |
| 製品パワー: | 380V | モジュール: | 国内 |
| 適切な製品: | ポンプヘッド自動組立機械 | 操作人: | 1人 |
| アセンブリタイプ: | 自動 | 空気圧計: | SMC |
| ハイライト: | High Production Capacity Disposable Scalpel Assembly Machine,Vacuum Adsorption Surgical Instruments Assembly Machine,Automatic Detection Medical Product Assembly Machine |
||
Features

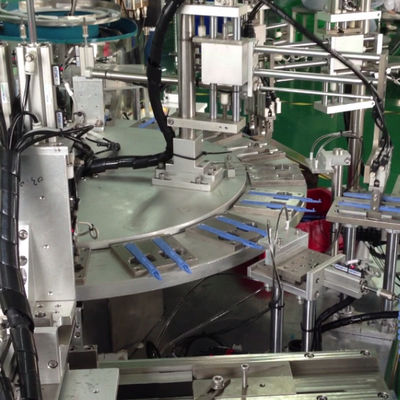

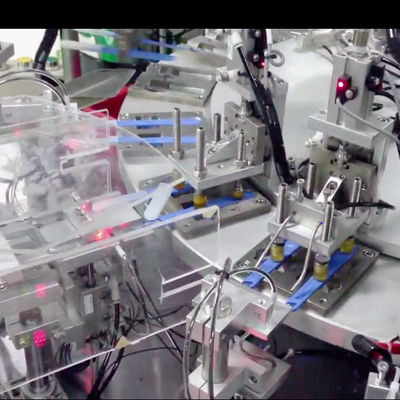

1. Used for automatic assembly and packaging of disposable scalpel and surgical knife.
2. Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.
3. Blade feeding with vacuum adsorption to reduce wearing of blade during processing.
4. Knife handle pad breaks automatically on machine, then assembled by welding.
5. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
6. Automatic counting function for production statistics.
7. Good and reject products exit independently for 100% qualified products with no defects.
8. PLC control system, touch screen HMI display, errors of reason and location can be accurately displayed.
Properties
|
Applicable products |
Disposable surgical knife, scalpel(blade,handle,sleeve) |
|
Production speed |
1500-8500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 98% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2800kg |
|
Operator |
1set/person |
