商品の詳細:
お支払配送条件:
|
| 正確さ: | 高い | 製品モデル: | キャップ |
|---|---|---|---|
| 保証: | 1年 | 主力: | サーボモーター |
| 空気圧: | 0.6-0.8MPA | 操作人: | 1人 |
| 操作率: | 96％ | スピード: | 調整可能 |
| 運転用タイヤ: | ターンテーブル | タイプ: | 自動 |
| 操作タイプ: | ターテブル/機械 | ||
| ハイライト: | 3600-1400pcs/hr Euro Cap Assembly Machine,99% Qualified Rate Euro Cap Assembly Machine,95% Operation Rate Euro Cap Assembly Machine |
||
Features

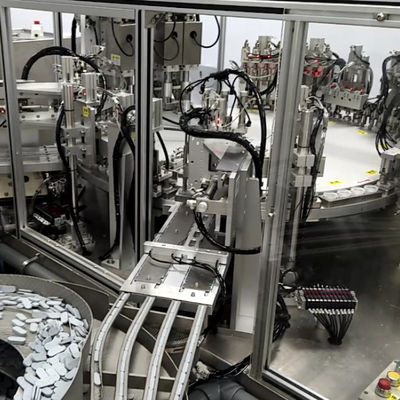

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance
10. Highly customized according to customer's requirements, actual capacity and production demand.
Properties
|
Applicable products |
Loop pull cap, double pull cap, single fold closure, double fold cap, break caps |
|
Production speed |
3600-1400pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2300kg |
|
Operator |
3sets/2persons,recommend 1set/person |
