商品の詳細:
お支払配送条件:
|
| サイズ: | コンパクト で 空間 を 節約 する デザイン | 満足のいくレート: | 約99％ |
|---|---|---|---|
| Product Capacity: | 4500pieces/hour | 製品の色: | 銀 |
| 保証: | 1年 | 操作方法: | タッチスクリーンコントロール |
| パッキング: | 木製のケース | 作業圧力: | 0.5-0.8MPA |
| アセンブリタイプ: | 全自動 | 自然: | 自動 |
| 精度: | 正確な | 主な素材: | ステンレス鋼 |
| 耐久性: | 長持ちする | 効率比: | 95%以上 |
| ハイライト: | 4500pieces/hour Lotion Pump Assembly Machine,99% Satisfactory Rate Trigger Sprayer Assembly Machine,1 Year Warranty Liquid Sprayer Assembly Machine |
||
Features

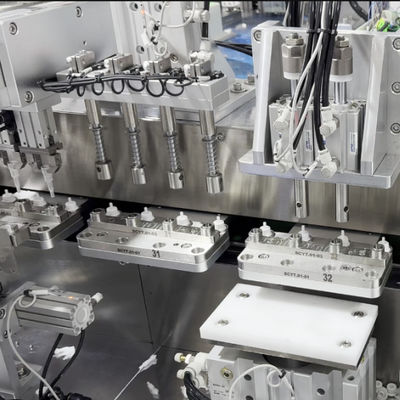

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.
2. Manipulators of each station are independent, simple and easy for daily maintenance.
3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.
4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.
5. Enclosure for feeding plate can be equipped to reduce noise during production.
6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

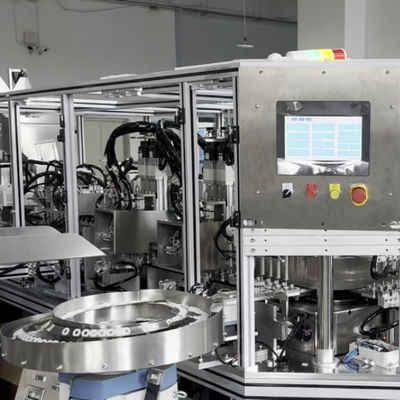

7. Whole equipment controlled by PLC system and touch screen operation.
Properties
|
Applicable products |
lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle |
|
Production speed |
1500-2500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz, 4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
