商品の詳細:
お支払配送条件:
|
| 適切な製品: | ゼリー自動組立機 | 製品の色: | 銀 |
|---|---|---|---|
| 製品認証: | CE、ISO | アクティブな力: | サーボモーター |
| アセンブリ容量: | 大容量 | 材料: | ステンレス鋼 |
| オペレーティング·システム: | plc | メンテナンス: | 簡単 |
| 操作インターフェイス: | タッチスクリーン | 操作インターフェイス: | タッチスクリーン |
| 機構: | サーボ | 組み立て物: | 毎日の必需品 |
| 色: | 銀 | 主な素材: | ステンレス鋼 |
| ハイライト: | GMP Compliant Jelly Cap Assembly Machine,High Qualified Rate Automatic Assembly Machine,Automatic Detection Daily Necessities Assembly Machine |
||
Features
1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.
Properties
|
Applicable products |

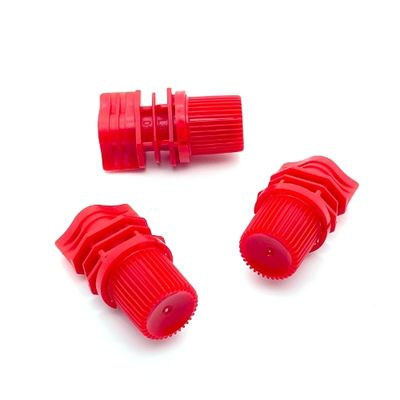

Helicap, 3 parts caps requiring orientation and screwing assembly |
|
Production speed |
3000-12000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99%(depends on raw material quality) |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2850kg |
|
Operator |
1set/person |
