商品の詳細:
お支払配送条件:
|
| 生産能力: | 1200〜10000/時間 | 操作タイプ: | ターンテーブル |
|---|---|---|---|
| 操作モード: | タッチスクリーン | タイプ: | 自動アセンブリ機械 |
| 資格: | ISO 9001、CE | 適切な製品: | ポンプヘッド自動組立機械 |
| パッケージングタイプ: | 木製のケース | メインドライブ: | サーボモーターとインデキシングディスク |
| スピード: | 高い | 材料: | ステンレス鋼 |
| 給餌方法: | 振動するプレート | 電圧: | 220V |
| 定額税率: | 99％ | メンテナンス: | メンテナンスは簡単 |
| ハイライト: | ISO 9001 Certified Medical Product Assembly Machine,220V Voltage IV Soft Bag Caps Welding Machine,99% Qualified Rate Automatic Assembly Machine |
||
Features

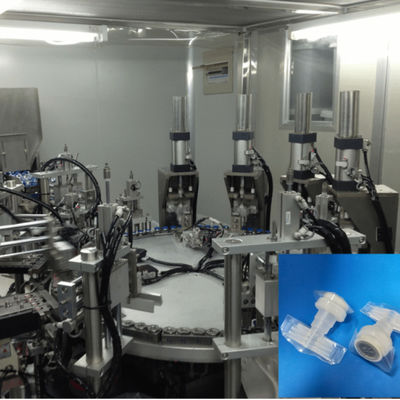

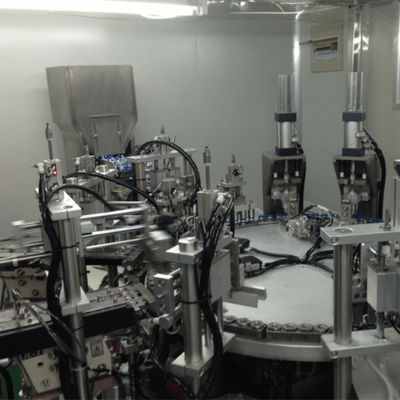

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
