商品の詳細:
お支払配送条件:
|
| 自動化グレード: | 自動 | 定額税率: | 99％ |
|---|---|---|---|
| 操作インターフェイス: | タッチスクリーン | 操作インターフェイス: | タッチスクリーン |
| 効率比: | 95%以上 | 制御システム: | plc |
| 電圧: | 220V | 空気圧: | 0.6-0.8MPA |
| 製品容量: | 時給4000〜12000キャップ | 動作方法: | ターンテーブル/機械 |
| 動作速度: | 調整可能 | タイプ: | アセンブリマシン |
| プロダクト頻度: | 50Hz | 頻度: | 50Hz |
| 自然: | 自動 | ||

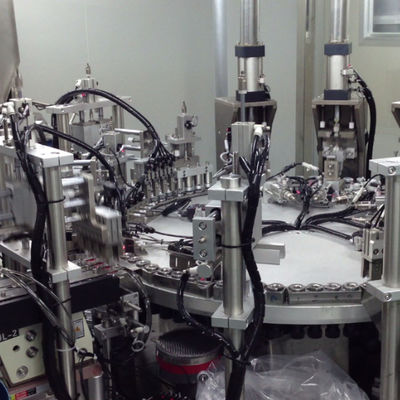

| ハイライト: | 4000-12000 caps per hour Euro Cap Assembly Machine,0.6-0.8MPa Air Pressure Cap Assembly Machine,Automatic Ultrasonic Welding Machine |
||
Features
1. For assembly caps and closures require ultrasonic welding.
2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
3. Main power servo motor + indexing drive, high precision and high qualified product rate.
4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.
5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.
Properties
|
Applicable products |
Multi-piece plastic caps and closures requiring ultrasonic welding |
|
Production speed |
8000-15000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
L3500×W3400×H1800(mm) Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
