商品の詳細:
お支払配送条件:
|
| 製品機能: | 自動キャップライニング、調整可能な速度、操作が簡単です | 適したキャップ材料: | プラスチック,アルミ,金属 |
|---|---|---|---|
| 制御システム: | PLCコントロール | 製品の用途: | 飲料、医薬品、化粧品、およびその他の産業 |
| 製品タイプ: | カップを作る機械 | 適格料金: | 99%の要求) |
| オペレーター: | 1組/人 | リズム: | 流れの生産ライン |
| 自動グレード: | 自動 | 製品電圧: | 380V |
| 手術: | 自動 | パッケージングタイプ: | 木製のケース |
| ハイライト: | 380V automatic cap lining machine,plastic cap lining machine,metal cap lining machine |
||
Features

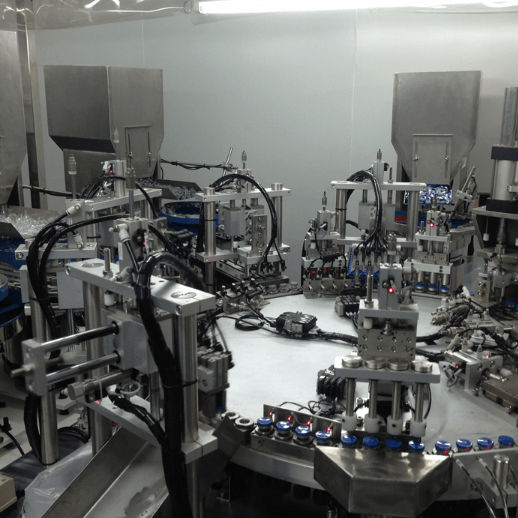

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance
10. Highly customized according to customer's requirements, actual capacity and production demand.
Properties
|
Applicable products |
Loop pull cap, double pull cap, single fold closure, double fold cap, break caps |
|
Production speed |
3600-1400pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2300kg |
|
Operator |
3sets/2persons,recommend 1set/person |
