商品の詳細:
お支払配送条件:
|
| 保証: | 1年 | 材料: | ステンレス鋼 |
|---|---|---|---|
| ホストマシンサイズ: | L1200*W900*H1670mm | 空気圧: | 0.6-0.8MPA |
| 電源電圧: | AC380V 50/60Hz | スピード: | 調整可能 |
| アプリケーション: | さまざまな液体のボトルキャッピング | 主な素材: | ステンレス鋼 |
| ハイライト: | stainless steel bottle capping machine,cap screwing machine for bottles,stainless steel cap screwing machine |
||

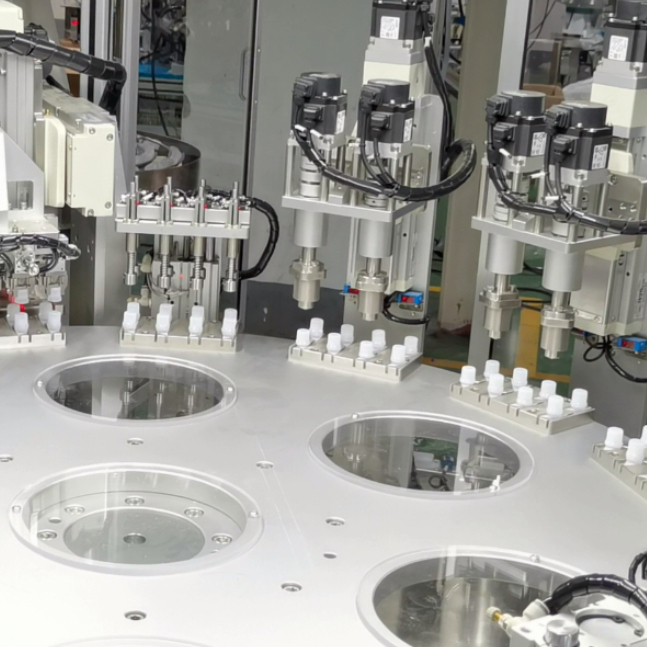

Features
1. Customize rotary or loop type machine for customer’s capacity requirements.
2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.
3. Screw in place precisely, no twist angle and twist broken occur.
4. Does not destroy appearance of product, high qualified rate performed.
5. Option screw force detector for torque requirements.
6. Detection after each assembly process, 100% real qualified products.
7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.
8. PLC control system, touch screen HMI operation.
9. Simple maintenance easy operation. No high technical requirement for Operator.
10. Easy maintenance of spare parts, short time replacement.
Properties
|
Applicable products |
Parts require screw fasten assembling, jujce cap , daily cap |
|
Production speed |
2500-10000pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 98%(depend on semi-product quality) |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz, 3kw/hr |
|
Dimension |
Varied with different product and output |
|
Weight |
About 1500kg |
|
Operator |
1set/person |
