商品の詳細:
お支払配送条件:
|
| 構成: | ヘリキャップ組立機 | 安全機能: | 複数の安全機能 |
|---|---|---|---|
| 消費電力: | 220V | プロダクト サイズの範囲: | カスタマイズ可能 |
| 自動化レベル: | 十分に自動化される | 電源: | 電気 |
| 主電源: | サーボ+シリンダー | 生産力: | 220V |
| 主な素材: | ステンレス鋼 | 品質比: | 98%以上 |
| 重さ: | 500kg | アセンブリメソッド: | オートマティック・フィード・アンド・アセンブリ |
| アセンブリ タイプ: | 乾燥剤のキャップ | スピード: | 調整可能 |
| ハイライト: | fully automated desiccant cap machine,servo motor assembly machine,desiccant cap assembly equipment |
||
Features

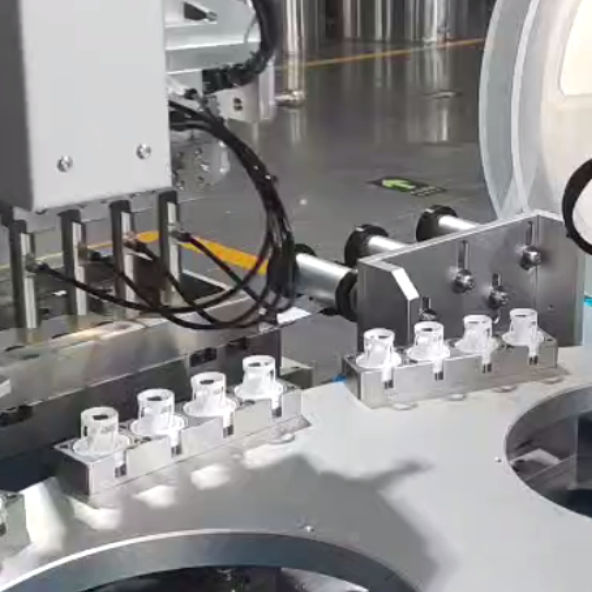

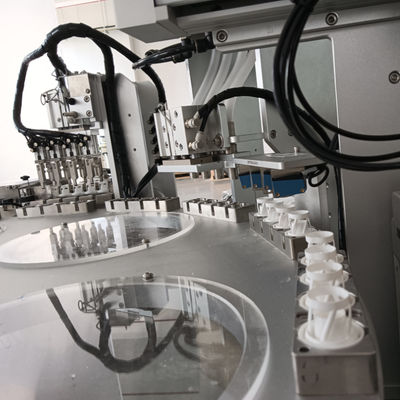

1. This equipment is applied for assembly of medicinal flange cover, duck tongue cover, spring cover and other moisture-proof agents, desiccant bottle caps.
2. Can be used for molecular sieve, silica gel and other granular desiccant automatic filling, can also be used for block desiccant, desiccant core assembly.
3. The equipment has automatic punching and cutting film mechanism (sealing paper), which can reduce the production cost of customers and improve the qualified rate of products.
4. Centralized processing of sealing paper waste to reduce the workload of operators.
5. Connect the desiccant centralized supply bin, reduce the desiccant in the assembly process of moisture absorption and pollution.
6. Circular cover adopts feeding machine, feeding stable and fast.
7. The main power is composed of servo motor + splitter, with stable running speed and high assembly accuracy.
8. Each assembly step is equipped with testing function to ensure 100% of qualified products.
9. With automatic counting function, easy to output statistics.
10. Good and defective products shall be exported separately.
11. control system adopts PLC control, man-machine interface operation, reduce the operator's work difficulty.
12. Equipment can be customized according to customers' actual production capacity and product specifications.
13. It can be connected with injection molding machine and image detection machine to form a whole automatic production line.
Properties
|
Applicable products |
desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap,CRC cap |
|
Production speed |
1500-8500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V.50Hz.4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2000kg |
|
Operator |
3sets/2persons,recommend 1set/person |
