Automatic Medical Product Assembly Machine with PLC Control

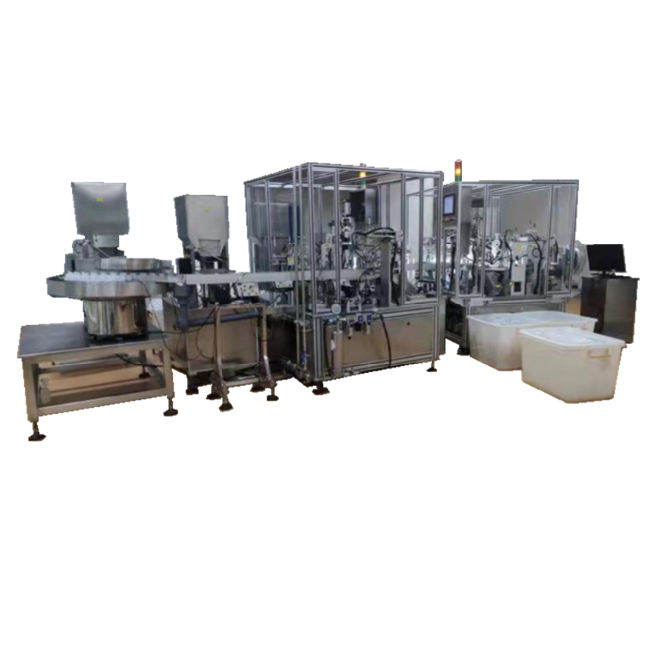

大画像 : Automatic Medical Product Assembly Machine with PLC Control

商品の詳細:

Place of Origin:	China
ブランド名:	SENCAN
証明:	CE, ISO9001
Model Number:	SC-TP-719

お支払配送条件:

Minimum Order Quantity:	1 set
価格:	Negotiate the price according to customer actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 - 20 sets

詳細製品概要

Features:	High efficiency, precise assembly	Qualified Product Rate:	Above 99%
Link:	Automatic assembly production line	Operating System:	PLC
Production Efficiency:	98%	Operator:	1 set/person
Operating Mode:	Touch screen	Application:	Medical Product Assembly
Driver:	servo motor + indexing drive	Nature:	Automatic
Active Force:	Servo moter	Country Of Origin:	China
Operating Environment:	Clean Room
ハイライト:	PLC control medical assembly machine , automatic medical product assembler , medical equipment assembly machine with PLC

Maximize Your Production with Our High-Performance Medical Product Assembly Machine

Key Specifications

Attribute	Value
Qualified Product Rate	Above 99%
Link	Automatic assembly production line
Operating System	PLC
Production Efficiency	98%
Features	High efficiency, precise assembly
Operator	1 set/person
Operating Mode	Touch screen
Application	Medical Product Assembly
Driver	Servo motor + indexing drive
Nature	Automatic
Active Force	Servo motor
Country Of Origin	China
Operating Environment	Clean Room

Advanced Features

Designed for automatic assembly of multi-component products with complex assembly requirements, including drug mixer caps for IV infusion bags and dispensing needles
Comprehensive processing capabilities: needle placement, ultrasonic welding, assembly, foil cutting, and sealing
Constructed with premium stainless steel and aluminum alloy materials, compliant with ISO and GMP standards
Independent driving source for each workstation simplifies maintenance procedures
Product-contact surfaces are precision-polished for optimal product protection
Automated foil cutting and sealing system
Integrated inspection function after each assembly process ensures defect-free production
User-friendly PLC control system with HMI operation requires minimal operator training
High-precision servo motor and indexing drive system delivers exceptional assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications, production capacities, and operational demands

Technical Properties

Applicable products	Multi-component products, infusion dispensing needle ports
Production speed	1000-1100pcs/hr/head
Rate of qualified product	Above 98% (depends on semi-finished product quality)
Rate of operation	Above 95%
Power source	AC380V, 50Hz, 5kw/hr; Compressed air: 7kg/m³
Dimension	L5815 × W2600 × H1900 (mm)
Weight	2300kg
Operator	1 set/person
